Key Takeaways
- STM32WBA6x controllers feature a 100MHz Arm Cortex-M33 core with extensive memory options.
- Dual-bank flash memory allows for seamless firmware updates without device downtime.
- Wireless sensitivity levels reach -100dBm for IEEE 802.15.4 and -96dBm for Bluetooth LE.
Overview of STM32WBA6x Controllers

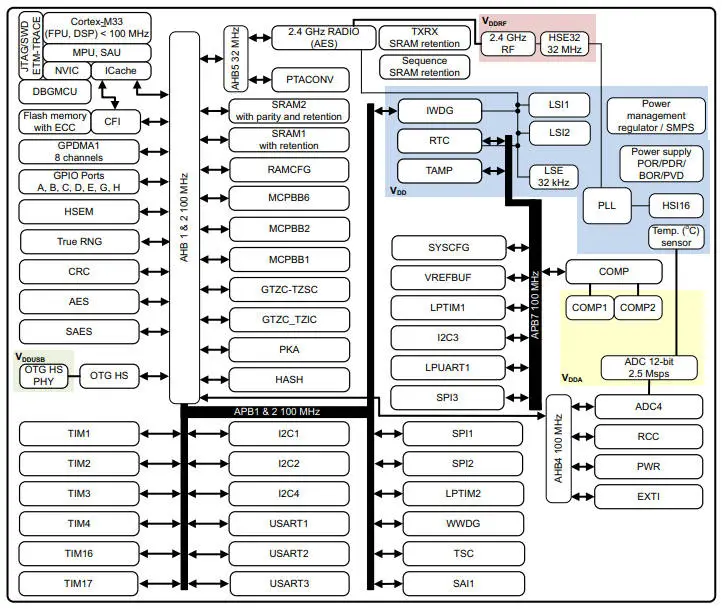

The STM32WBA6x series of controllers, equipped with a 100MHz Arm Cortex-M33 core, offer impressive performance with options for up to 2Mbytes of flash memory and 512kbytes of RAM. These controllers are designed to support low-bandwidth wireless communication protocols, including Thread, Zigbee, Matter, and Bluetooth.
One of the standout features of the STM32WBA6x is its dual-bank flash memory. This design allows users to install firmware updates while continuing to use their devices, thus preventing any interruption. This is particularly beneficial for applications where constant connectivity and performance are critical.
The wireless subsystem of the STM32WBA6x demonstrates remarkable sensitivity, achieving performance as low as -100dBm for 250kbit/s IEEE 802.15.4 and -96dBm for 1Mbit/s Bluetooth LE. Such specifications ensure reliable communication in various settings, reinforcing the STM32WBA6x’s standing in the market for wireless-enabled applications. Overall, the STM32WBA6x controllers combine advanced processing capabilities with thoughtful features tailored to enhance user experience and device functionality in wireless applications.
The content above is a summary. For more details, see the source article.
