Key Takeaways

• Olimex releases the ESP32-C6-Devkit-Lipo, a breadboard-friendly development board with integrated battery support for uninterruptible power.
• The board features the ESP32-C6-MINI-1-N4 module with Wi-Fi 6, Bluetooth 5, and 18 GPIO pins for versatile applications.
• The product is available for €8.95, with design files shared under the CERN Open Hardware License Version 2 on GitHub.

Overview of the ESP32-C6-Devkit-Lipo

Olimex, a Bulgarian open-hardware specialist, has unveiled its latest product, the ESP32-C6-Devkit-Lipo. This development board is designed with versatility in mind, featuring integrated support for a lithium-polymer battery to ensure continuous operation, even during power interruptions.

At the core of the board is the ESP32-C6-MINI-1-N4 module from Espressif. This module boasts a single 32-bit RISC-V core that runs at speeds up to 160MHz, along with 4MB of Flash storage and 512KB of static RAM. With 18 general-purpose input/output (GPIO) pins accessible via two 0.1-inch headers, the board is breadboard-friendly, allowing easy integration into projects that require prototyping.

The ESP32-C6 module supports single-band Wi-Fi 6 and Bluetooth 5 Low Energy (BLE), along with IEEE 802.15.4 functionalities, making it compatible with standards like Zigbee, Thread, and Matter. This connectivity opens up a wide array of possibilities for Internet of Things (IoT) applications.

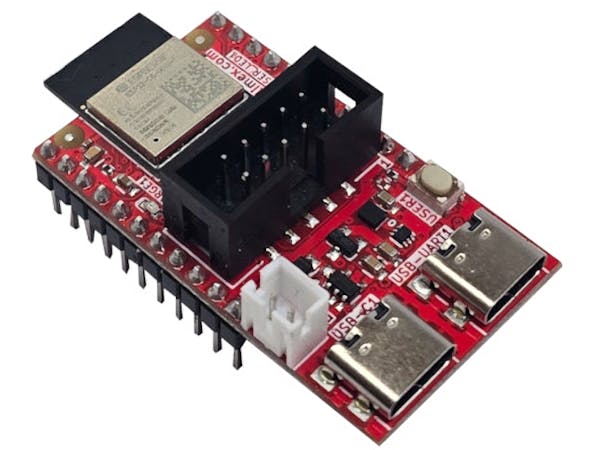

Additionally, the board features two USB Type-C connectors: one for programming and debugging, equipped with automated handshake capabilities, and another solely for JTAG debugging. A UEXT solderless expansion connector is situated at the top, alongside a user-definable button. A dedicated connector allows the option to attach a lithium-polymer battery. This can either serve as the main power source or act as an uninterruptible power supply (UPS), thus maintaining functionality even when primary power sources fail.

Olimex has priced the ESP32-C6-Devkit-Lipo at €8.95, making it an accessible choice for developers. The design files are made available on GitHub under the CERN Open Hardware License Version 2, encouraging further innovation and development within the open-source hardware community.

Overall, the ESP32-C6-Devkit-Lipo stands out as a practical tool for makers and developers looking to empower their projects with reliable, high-performance wireless connectivity while ensuring continuous operation. As the demand for innovative hardware solutions grows, this board positions itself as a valuable addition to any developer’s toolkit.

The content above is a summary. For more details, see the source article.
