Key Takeaways
- The M5 Paper S3 is used to create an environmental panel that displays temperature and humidity from Home Assistant sensors.
- This project utilizes the Home Assistant REST API for data retrieval, enabling updates at low power consumption.
- The system is designed to run autonomously on battery power for several days, making it portable and convenient for home automation applications.

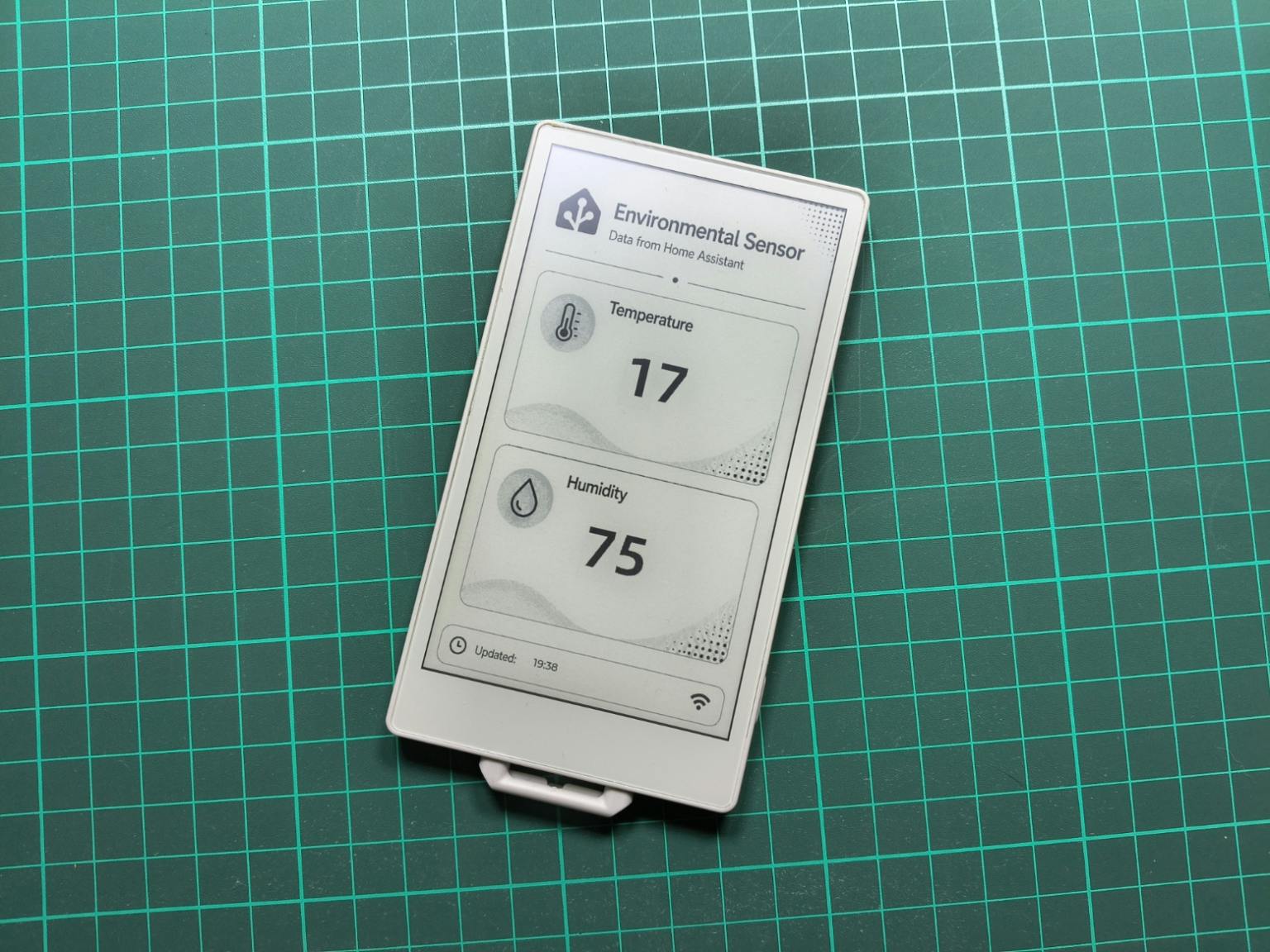

Creating an Environmental Panel with M5 Paper S3
The M5 Paper S3 is a versatile device equipped with a 4.7-inch ePaper display, ideal for low-power, information-display projects. This article focuses on building an environmental panel that showcases real-time temperature and humidity values from a SONOFF SNZB-02P sensor connected to a Home Assistant system.
Home Assistant manages various sensors, organizing them into devices and entities. For this project, the temperature and humidity readings are accessed via the Home Assistant REST API, which is selected for its simplicity and robustness. A long-lived access token is created for secure API access, allowing the M5 Paper S3 to send HTTP GET requests to retrieve sensor data.
The panel is programmed using M5Stack’s UIFlow2, featuring a straightforward interface that displays temperature, humidity, and the last update time. Initial setup includes connecting to WiFi and sending requests for both temperature and humidity. Upon a successful response, the respective values are displayed on the screen. The device can operate on battery power for days, providing a convenient information display without needing constant recharging.
The programming details cover initializing hardware, managing display brightness, and employing an efficient update strategy to minimize power usage. By employing a 10-second delay post-update, the system can enter low-power mode, extending battery life.
Through this project, users not only gain insights into creating a functional environmental panel but also establish a framework for similar applications that can display diverse data sourced from Home Assistant. The result is a clear, practical solution for home automation enthusiasts seeking to monitor environmental conditions effortlessly.
The content above is a summary. For more details, see the source article.
