Key Takeaways

• The MQ7 sensor detects carbon monoxide (CO) concentrations ranging from 20 to 2000 ppm.
• It offers adjustable sensitivity via a potentiometer, allowing for customizable readings.
• The sensor is compatible with various components including DFRobot’s FireBeetle 2 ESP32-E and a TFT LCD display.

Overview of the MQ7 Carbon Monoxide Sensor

The MQ7 carbon monoxide sensor is an essential tool for detecting CO levels in the environment, with the capability to monitor concentrations from 20 to 2000 parts per million (ppm). This analog sensor is designed for use with Arduino systems and can be fine-tuned for sensitivity through an integrated potentiometer, making it versatile for numerous applications.

When connected to an appropriate microcontroller, such as the DFRobot FireBeetle 2 ESP32-E, it provides real-time data about air quality. Users can obtain analog readings directly from the sensor to assess the level of CO present, which is crucial for safety in enclosed spaces and industries where CO exposure can pose serious health risks.

The MQ7 sensor’s output is directly proportional to the concentration of carbon monoxide, enhancing its reliability in various settings. Its implementation in projects can be tailored based on specific environmental requirements, especially for those concerned with air quality management.

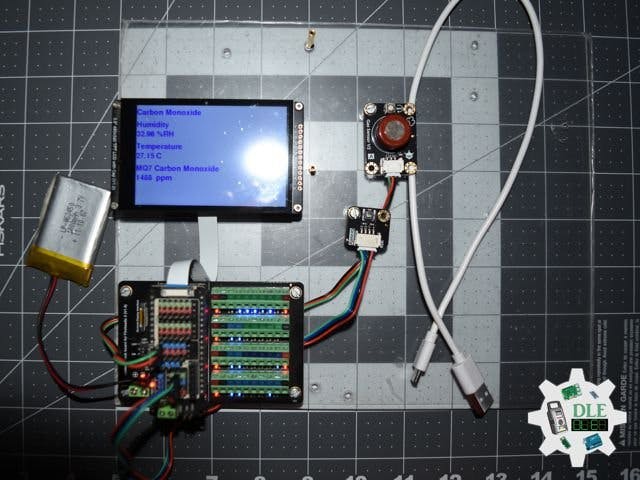

To effectively utilize this sensor, several components are recommended, including a 3.5″ TFT LCD capacitive display for visual data representation, temperature and humidity sensors, and a dedicated IO shield. A lithium-ion battery allows for portable applications, ensuring the sensor can function independently without being tethered to a power source.

In addition to measuring CO, integrating the MQ7 with other sensors and microcontrollers enables developers to create sophisticated IoT solutions for environmental monitoring. These systems can provide alerts for unsafe CO levels, contributing to safety and health in various environments.

Overall, the MQ7 carbon monoxide sensor stands out as a reliable and customizable tool for detecting carbon monoxide, essential for enhancing safety measures in various applications. By leveraging its capabilities alongside advanced microcontrollers like the FireBeetle ESP32-E, users can build comprehensive solutions that monitor air quality effectively.

The content above is a summary. For more details, see the source article.
